Unsaturated Polyester Resin Plant

Unsaturated Polyester Resin Plant

Unsaturated Polyester Resin Plant
Unsaturated Polyester Resin Plant
Send Enquiry

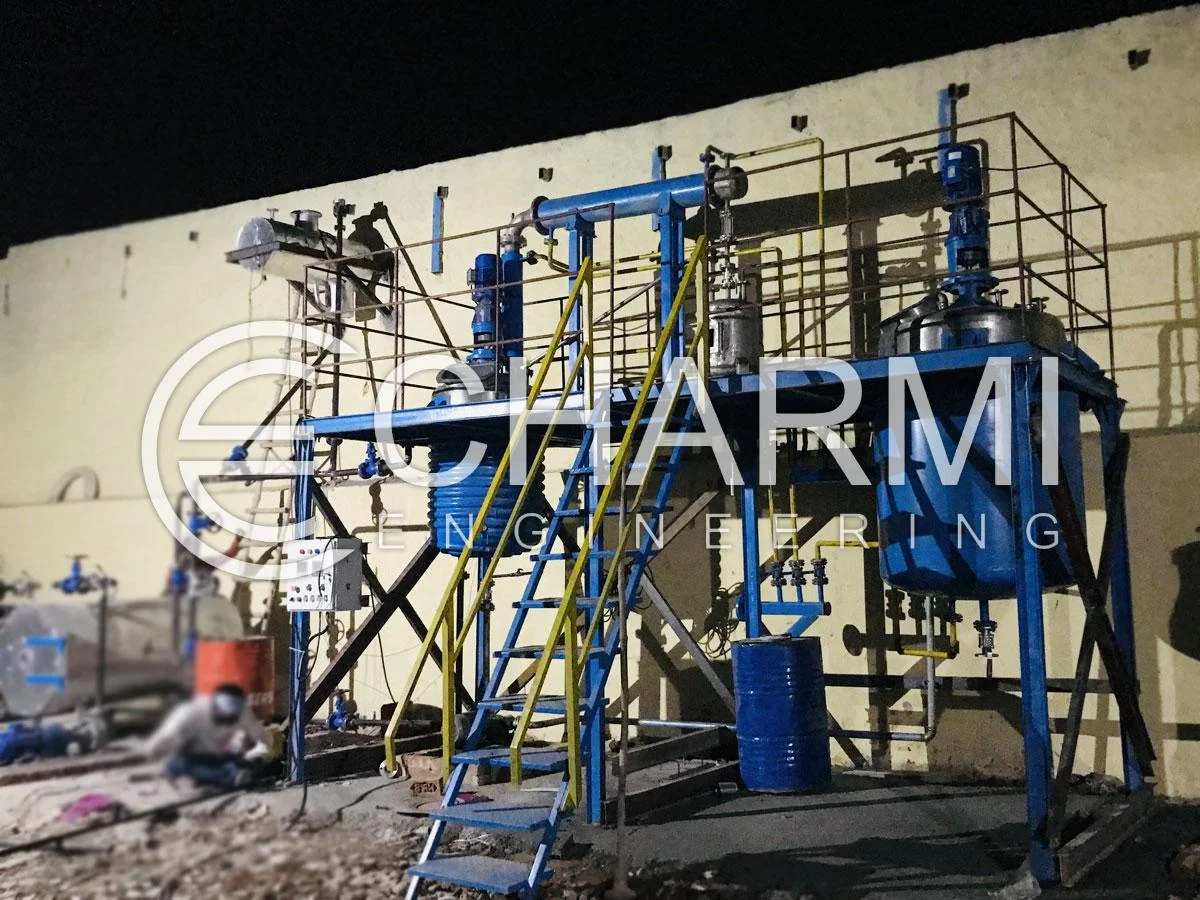

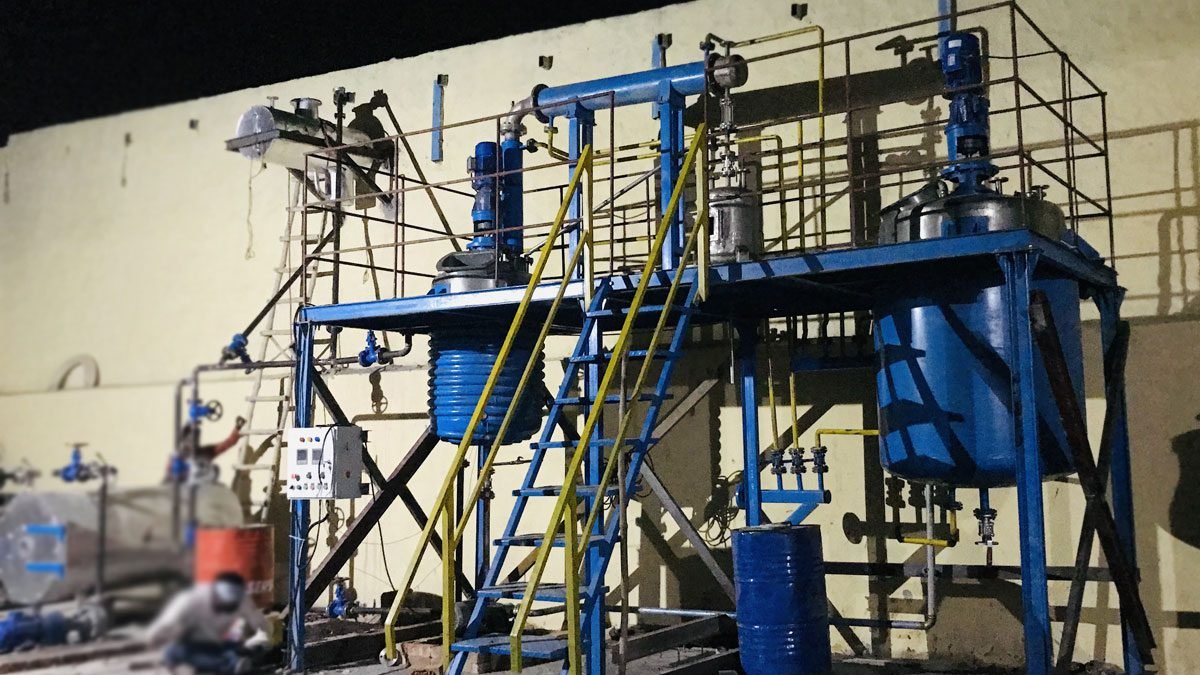

Charmi Engineering is engaged in manufacturing and exporting Unsaturated Polyester Resin Plant our clients spread worldwide. We Manufacture resin plant from 50 liters to 20 tons, batch on solid base. Polyester Resin Plant is available in various technical specifications are appreciated worldwide for its unique features such as high durability, corrosion resistance and optimum utility. In resin plant we provide Limpet coil reactor , packed columns, Shell and Tube Condenser , separator and blender ,if need then we provide internal cooling coil ,in reactor heating temperature range 50 to 250 degree by thermic fluid heater , condenser tube side row material of resin and shell side water for cooling purpose, column inside ss strap and ceramic for material back to reactor ,column outside water circulation line , separator capacity depend on reactor volume ,when heating & mixing is completed then transfer material in blender for temperature cool down purpose , when material temperature around 30 to 50 degree material move in packing drum

Charmi Engineering is leading manufacturer of Polyester Resin Plant. There are two types of Polyester resin, Saturated & Unsaturated Polyester resin. Saturated Polyester resin is used in Pigment, Ink, Coil Coating, Thermo Plast, Soda Bottle, Textiles, X-ray films, Magnetic tapes, Packaging , Metalized film. Unsaturated Polyester resin is widely used in Sanitary-ware, pipes, tanks, gratings and high performance components for the marine and automotive industry. The Major Operations involved in the manufacture of polyester resin are etherification and blending – which are carried in their respective kettles. The most common raw materials used are polypropylene glycol, melic anhydride and styrene monomer. In addition small quantities of inhibitors and additives are required for the process.

The Process involves is poly Condensation reaction and blending the polyester resign with monomer. Due to the sensitive of polyester resign to contamination

SPECIFICATION

Capacity50 L TO 20,000 LITER
Machinery in PlantChemical Reactor , Column , Condenser , Receiver & blender
Reactor TypeBoth Dish End , Motor and Gear box , Inside Agitator for Mixing Material , Bottom discharge connection Vertical outer heating limpet and jacketed
Usage/ApplicationReaction , Mixing or Blending Row Material
Mixing MaterialChemicals / Oils / Lubricant / Liquid Syrup / Sugar Syrup / Wax Melting /Engine Oil
Material of ConstructionStainless Steel ,Mild Storage
OrientationVertical Orientation
ShapeRound
Tank DiameterAs Per Your Requirement
Electric HeaterSingle Phase or Three Phase
Temperature ControllerAutomatic or PLC Operated
Mixing Speed (RPM)Variable , Speed Up And Down As Per Requirement
Finishing TypeMatt Type ,Mirror Finishing
Heating and Cooling SystemYES
Temperatures Range30 TO 250 Degree
VacuumYes
Cooling CoilInternal Coil
OuterHeating coil or jacket
Plat FoamMild Steel

Application Industry

  • Pharmaceutical industry
  • Chemical industry
  • Food and beverages industry
  • Petro-chemical industry
  • Resins industry
  • Polymers industry
  • Coatings industry
  • Adhesives industry
  • Agricultural industry
  • General chemicals industry
  • Plastics industry
  • Rubber industry
  • Herbal Extractor
