Pilot Reactor

  • Home
  • Products
  • Pilot Reactor
product

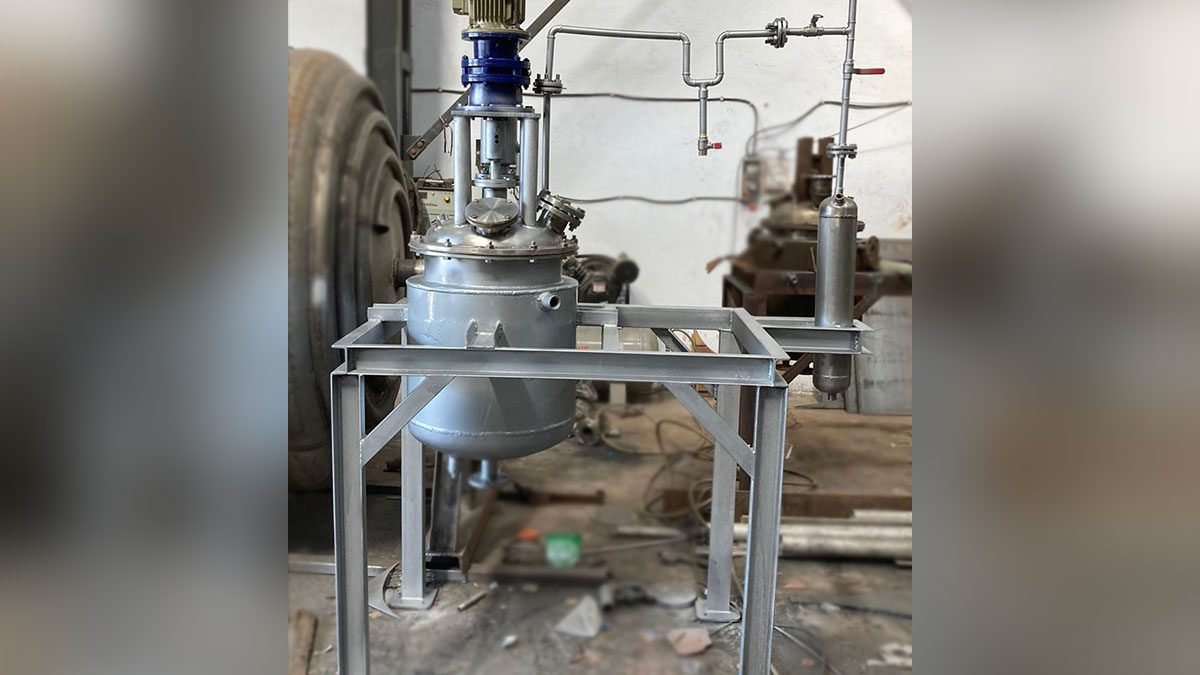

Pilot Reactor

Pilot Reactor
Send Enquiry

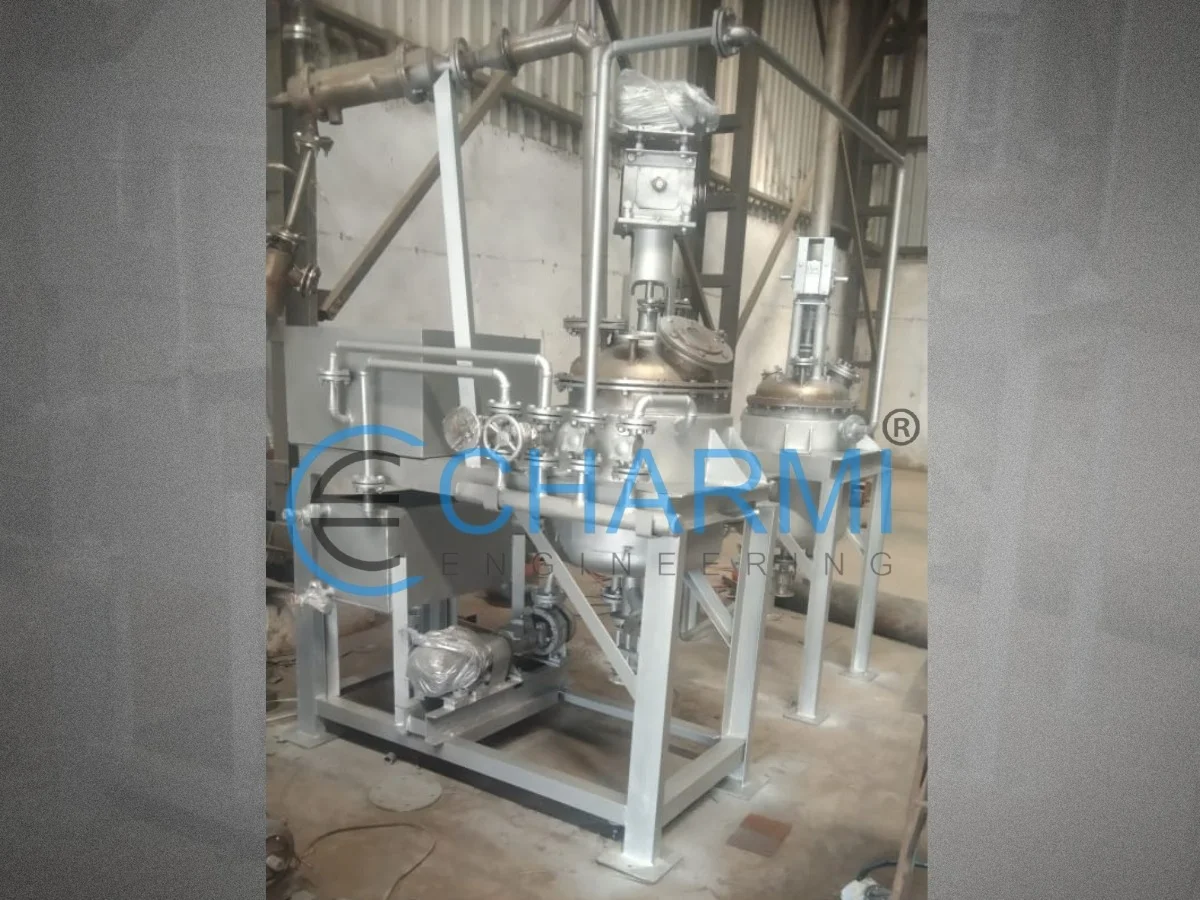

Charmi Engineering is engaged in manufacturing and exporting Pilot Resin Pant our clients spread worldwide. We Manufacture resin plant from 20 liters to 100 Liter , batch on solid base. Multipurpose Pilot Resin Plant is available in various technical specifications are appreciated worldwide for its unique features such as high durability, corrosion resistance and optimum utility.

In resin plant we provide Reactor , Column ,Condenser , Receiver Tank , Blender also We Provide You Reflex Line For Move Extracted Material Return To Reactor if Required Colling So We Provide You internal cooling coil ,in reactor heating temperature range 50 to 300 degree by Electric Heater , condenser tube side row material of resin and shell side water for cooling purpose, column inside ss strap and ceramic for material back to reactor ,column outside water circulation line ,we Provide Jacket For Heating and Colling , If You Have Steam Boiler and Water So Heating and Colling Possible Both Process , All System Tested By Hydro Test , All Reaction Under Vacuum , We Also Provide You Thermic Fluid Heating System, Circulation Pump , Control Panel For Controlling Temperature Range , Variable Drive For Controlling Rpm Of Reactor , All Plant Set On Plat Foam

Reactor Bottom Have Bottom Valve With Sample Testing Valve , Also We Provide Pipeline For Reactor To Blender ,Reactor in Insulated With Glass Wool And Aluminum Cladding , Pilot Resin Plant Use In Multipurpose Product Line

SPECIFICATION

Capacity20 L TO 100 LITER
Machinery in PlantChemical Reactor , Column , Condenser , Receiver & blender
Reactor TypeBoth Dish End , Motor and Gear box , Inside Agitator for Mixing Material , Bottom discharge connection Vertical outer heating jacketed
Usage/ApplicationReaction , Mixing or Blending Row Material
Mixing MaterialChemicals / Oils / Lubricant / Liquid Syrup / Wax Melting /Engine Oil
Material of ConstructionStainless Steel ,Mild Storage / Mild Steel With Rubber Coated
OrientationVertical Orientation
ShapeRound
Electric HeaterSingle Phase or Three Phase
Control PanelAutomatic or PLC Operated , Vfd , Temperature Indicator
Mixing Speed (RPM)Variable , Speed Up And Down As Per Requirement
Finishing TypeMatt Type ,Mirror Finishing
Heating and Cooling SystemYES
Temperatures Range30 TO 250 Degree
VacuumYes
Cooling CoilInternal Coil
OuterHeating coil or jacket
Plat FoamMild Steel
HeatingElectric Heater

Application Industry

  • Pharmaceutical industry
  • Chemical industry
  • Food and beverages industry
  • Petro-chemical industry
  • Resins industry
  • Polymers industry
  • Coatings industry
  • Adhesives industry
  • Agricultural industry
  • General chemicals industry
  • Plastics industry
  • Rubber industry
  • Herbal Extractor
