Resin Plant
Charmi Engineering is engaged in manufacturing and exporting Resin Plant our clients spread worldwide. We Manufacture resin plant from 50 liters to 20 tons, batch on solid base. Resin Plant is available in various technical specifications are appreciated worldwide for its unique features such as high durability, corrosion resistance and optimum utility.

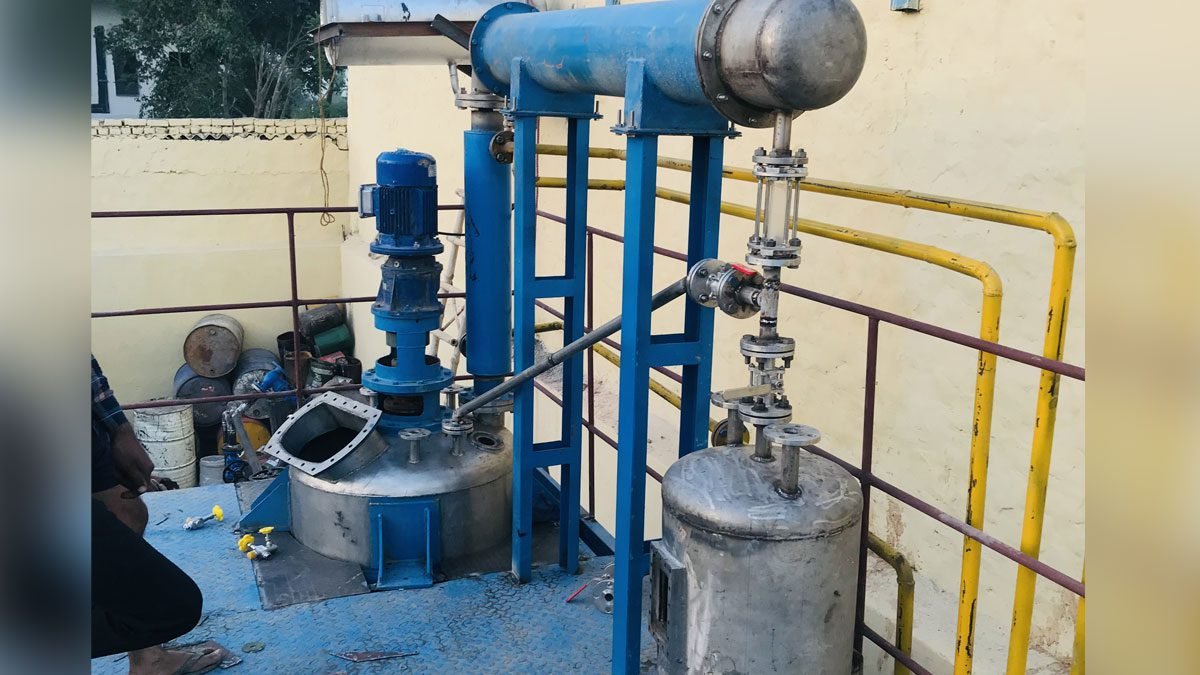

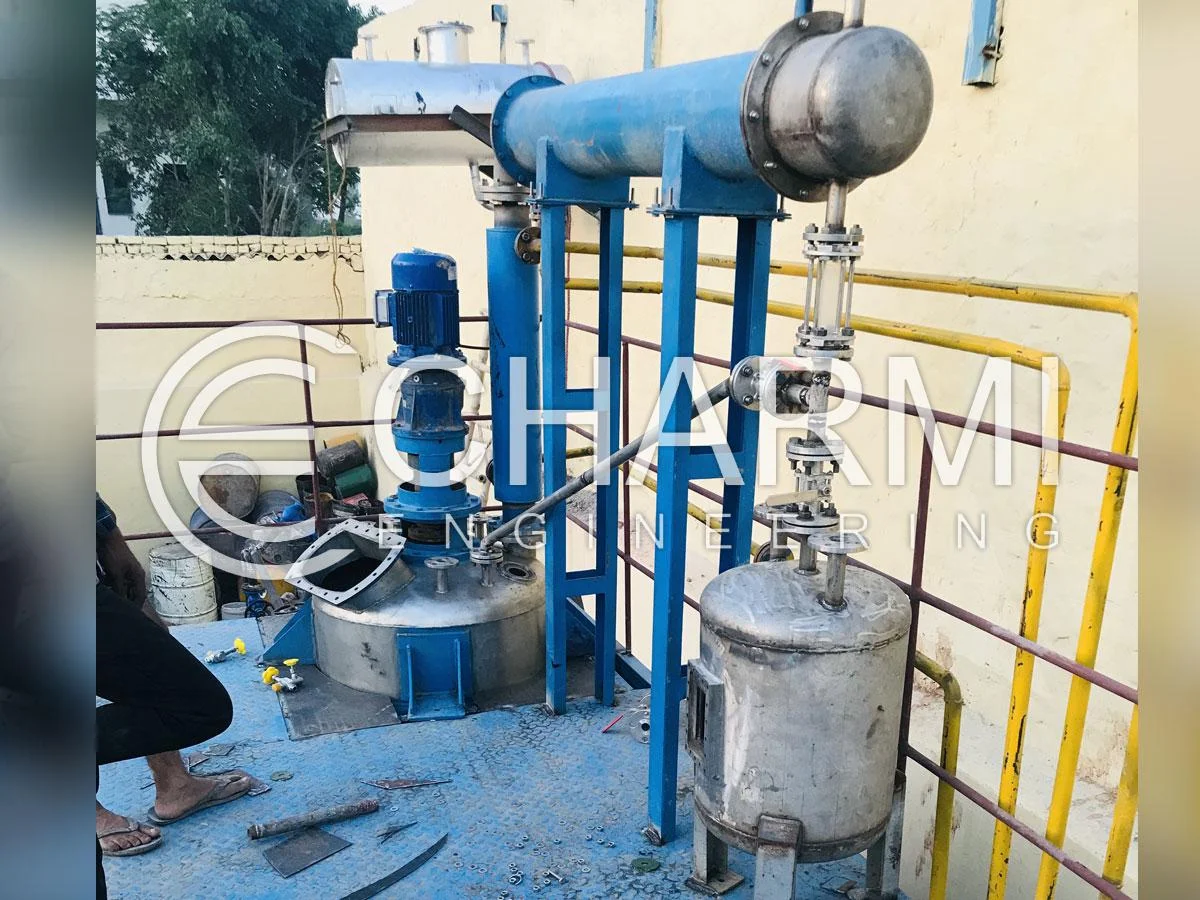

In resin plant we provide Limpet coil reactor , packed columns, Shell and Tube Condenser , separator and blender ,if need then we provide internal cooling coil ,in reactor heating temperature range 50 to 250 degree by thermic fluid heater , condenser tube side row material of resin and shell side water for cooling purpose, column inside ss strap and ceramic for material back to reactor ,column outside water circulation line , separator capacity depend on reactor volume ,when heating & mixing is completed then transfer material in blender for temperature cool down purpose , when material temperature around 30 to 50 degree material move in packing drum
SPECIFICATION
Capacity | 50 L TO 20,000 LITER |
Machinery in Plant | Chemical Reactor , Column , Condenser , Receiver & blender |
Reactor Type | Both Dish End , Motor and Gear box , Inside Agitator for Mixing Material , Bottom discharge connection Vertical outer heating limpet and jacketed |
Usage/Application | Reaction , Mixing or Blending Row Material |
Mixing Material | Chemicals / Oils / Lubricant / Liquid Syrup / Sugar Syrup / Wax Melting /Engine Oil |
Material of Construction | Stainless Steel ,Mild Storage |
Orientation | Vertical Orientation |
Shape | Round |
Tank Diameter | As Per Your Requirement |
Electric Heater | Single Phase or Three Phase |
Temperature Controller | Automatic or PLC Operated |
Mixing Speed (RPM) | Variable , Speed Up And Down As Per Requirement |
Finishing Type | Matt Type ,Mirror Finishing |
Heating and Cooling System | YES |
Temperatures Range | 30 TO 250 Degree |
Vacuum | Yes |
Cooling Coil | Internal Coil |
Outer | Heating coil or jacket |
Plat Foam | Mild Steel |
Application Industry
- Pharmaceutical industry
- Chemical industry
- Food and beverages industry
- Petro-chemical industry
- Resins industry
- Polymers industry
- Coatings industry
- Adhesives industry
- Agricultural industry
- General chemicals industry
- Plastics industry
- Rubber industry
- Herbal Extractor
